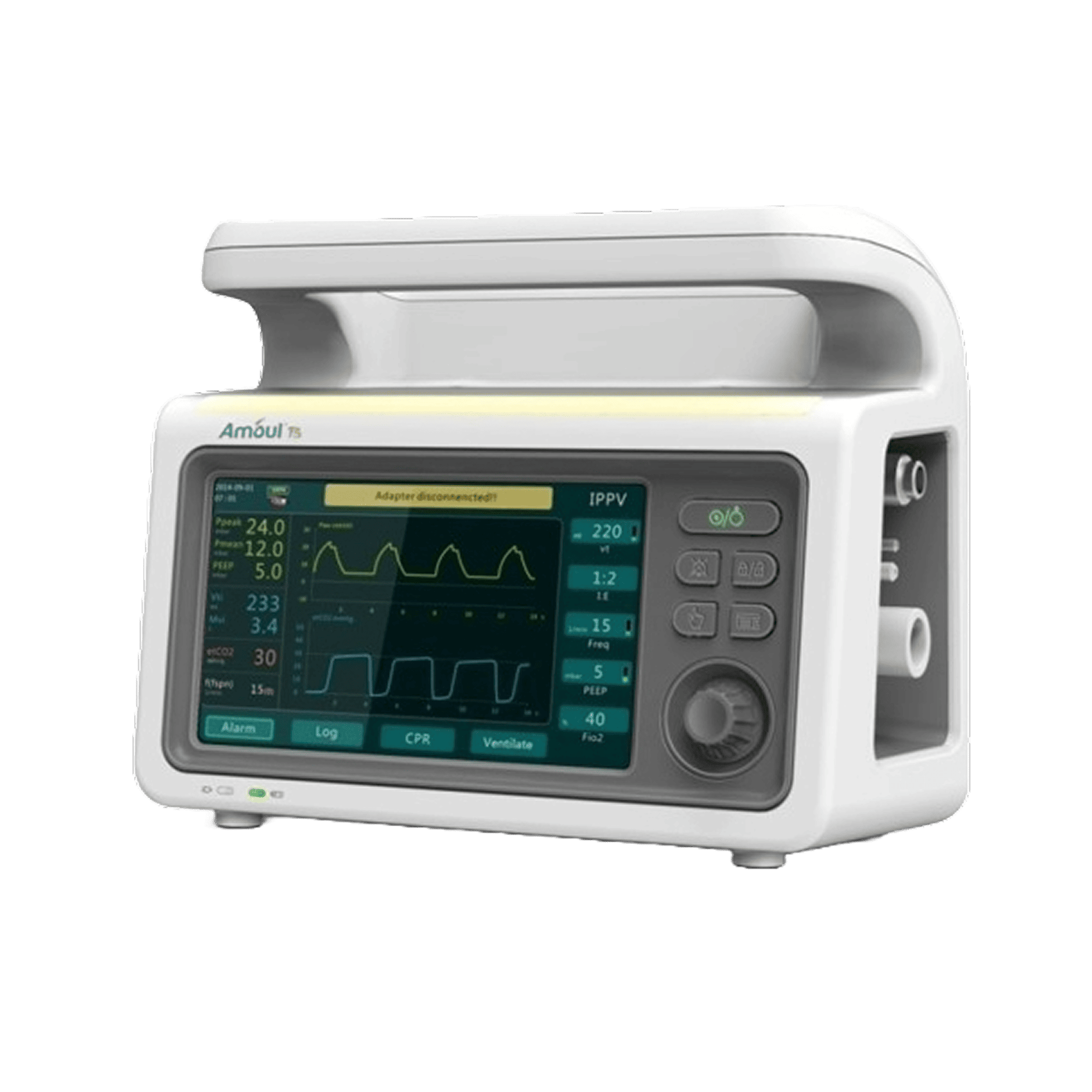

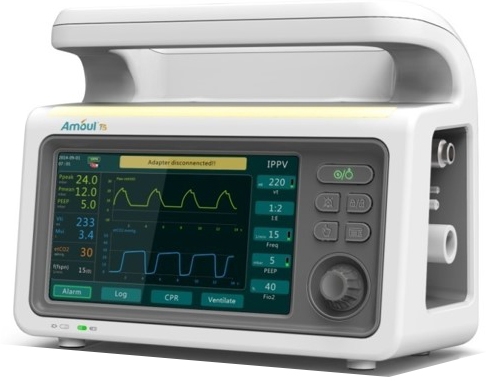

T5

The T5 Ventilator is a compact, lightweight, and feature-rich respiratory support device designed for critical care, transport, and emergency scenarios. Weighing only 3.4 kg, it combines portability with performance, offering a 7-inch color touchscreen, multiple ventilation modes, and advanced CPR functionality aligned with AHA and ERC guidelines. With real-time waveform display, optional EtCO₂ monitoring, internal PEEP, and over 5 hours of battery life, the T5 ensures responsive, reliable ventilation support in both hospital and field settings.

Specifications

Compact & Lightweight Design

The T5 ventilator is engineered for mobility, weighing just 3.4 kg, making it ideal for emergency response, intra-hospital transfers, and use in ambulances or field settings. Its small footprint ensures it fits easily in tight spaces while maintaining full performance capabilities.

7” Color Touchscreen

Equipped with a 7-inch high-resolution color display, the T5 offers a responsive, user-friendly interface with clear visibility of parameters and real-time waveforms. The screen lock function ensures safety during transport or unintentional contact, helping clinicians operate with confidence in dynamic environments.

Advanced Ventilation Modes

The T5 supports a wide range of ventilation modes including IPPV, V-AC, P-AC, V-SIMV, P-SIMV, CPAP, HFNC, Manual, and CPR, giving healthcare providers flexibility to manage various respiratory conditions from basic oxygen therapy to full life-support interventions.

Tidal Volume Range

With a tidal volume adjustability from 50 to 2500 ml, this ventilator can be used across patient categories, including pediatrics and adults. It ensures accurate volume delivery tailored to the patient’s lung capacity and clinical status.

Adjustable Oxygen Concentration

The device offers FiO₂ control ranging from 40% to 100%, enabling clinicians to precisely regulate the oxygen mix according to therapeutic requirements—whether in stable care or high-acuity emergency cases.

Built-in PEEP Valve

An integrated Positive End-Expiratory Pressure (PEEP) valve helps maintain alveolar pressure at the end of exhalation, enhancing oxygenation and reducing the risk of atelectasis. This feature is crucial for managing patients with acute respiratory distress or lung injury.

EtCO₂ Monitoring (Optional)

The T5 offers an optional mainstream EtCO₂ module, allowing real-time monitoring of end-tidal CO₂ levels. This feature provides valuable insights into ventilation effectiveness, particularly during anesthesia, resuscitation, and weaning.

CPR Mode

The device features a built-in CPR mode compliant with the latest AHA and ERC guidelines, supporting structured and effective resuscitation during cardiac arrest scenarios. It ensures rapid switching to life-saving ventilation settings during critical events.

Battery Backup

The ventilator is powered by a rechargeable lithium-ion battery that delivers over 5 hours of continuous operation, allowing clinicians to provide uninterrupted care during transport, in remote locations, or in the event of power outages.

Alarm System & Waterproofing

Safety is reinforced with a full set of audible and visual alarms for abnormal pressure, disconnection, or power failure. The IPX4 water-resistant casing protects against splashes, making the T5 suitable for rugged environments, outdoor use, and surgical areas.

Core Features

• 7” color touch screen with screen lock function
• Airway pressure and EtCO2 real-time waveforms
• Compact design with a weight of 3.4kg 1639
• Advanced CPR mode conforms to the latest AHA & ERC guidelines
• Tidal volume: 50 ~ 2500ml
• Ventilation modes: IPPV, V-AC, V-SIMV, P-AC, P-SIMV, CPAP, PCV, Manual, CPR, and HFNC
• Internal PEEP valve
• O2 concentration(FiO2) is adjustable from 40% to 100%
• Rechargeable battery support over 5 hours of working time SCAN TO LEARN MORE
• Audible and visual alarms for a high level of patient safety
• Optional mainstream EtCO2 module
• IPX4 waterproof
